When the stitched outline is slightly off, its considered as Registration issue.

What Are Registration Issues In Embroidery?

• Registration issues occur when different parts of an embroidery design don’t align correctly. For example, an outline may not match the fill stitch underneath, or multiple design elements may appear shifted. These misalignments lead to poor visual quality and can affect the durability of the design.

The main causes of poor registration can be:

Stabilizer And Fabric Mismatch

Stabilizer chosen is not the right weight or type, for the fabric or the number of stitches in the design.

The stabilizer plays a crucial role in keeping your fabric from shifting during embroidery. Using the wrong type, or not using one at all, can lead to your design shifting out of place mid-stitch.

Always consider your fabric type while choosing the stabilizer (tear-away, cut-away, or wash-away). It is best to always hoop both the stabilizer and fabric securely to prevent movement.

Different fabrics behave differently during embroidery. Stretchy or lightweight fabrics tend to move more, increasing the chance of registration problems. You can avoid this problem by:

• Selecting the right embroidery technique for the fabric.

• Using temporary adhesive sprays or a basting stitch to secure delicate fabrics.

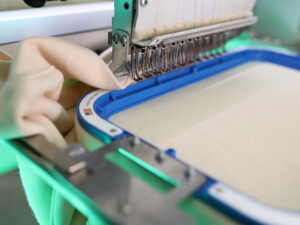

The Fabric Was Hooped Incorrectly

Outlines that are only slightly off are most usually caused by incorrect hooping. the hoop must be properly tightened after fabric and stabilizer have been hooped, as during the stitching process it can pull the fabric towards the center of the hoop.

To stop the fabric and stabilizer from shifting, use a temporary adhesive spray to adhere the stabilizer to the wrong side of the fabric.

Hoop Obstruction

If the outlines or other registration areas are completely off, it means the arm of the machine was bumped during the stitching process. There should be enough space behind the machine so that the arm does not bump into the wall. It’s worth noting that before beginning a project, free your work space of anything that could restrict the hoop’s movement.

Bad Digitizing

The most common problem caused by pull and push compensation is poor outline registration.

One of the leading causes of registration problems is improper digitizing. If the embroidery design wasn’t digitized with precise stitch sequences or lacks the right compensation for fabric movement, it will likely result in misaligned stitches.

Bobbin Tension Too Tight

This is common when working with designs that have outlines, but can also be seen with complex designs that have solid fills.
If the designs outline is separating from the main part of the design; and there is no issue in selection of right stabilizer, try loosening your bobbin tension just a bit. When the bobbin tension is a little too tight, it pulls the stitches down and causes the outline to be off.

TIP:

This is the easiest mistake to fix in most cases. Keep a set of fine tipped markers in various shades. Color in the area and it will be barely noticeable where the outline has very little gap.

Machine Speed And Maintenance

Sometimes, the problem isn’t with your design or fabric, but with your embroidery machine. High stitching speeds or poorly maintained machines can throw off your registration.

Tip To Fix:

• Reduce your stitching speed, especially on complex designs.

• Regularly clean and service your embroidery machine.

• Use test runs before the final embroidery to catch potential issues.
